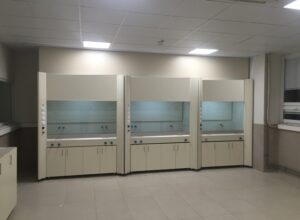

fume-cupboard-fume-hood
BS-EN-14175 certified fume cupboard, also known as fume hood; basically, is a local ventilation cabinet. Fume cupboard is designed to limit exposure to hazardous or toxic fumes & vapors in the laboratories. Above all, fume hood is the essential device in a laboratory where chemical reactions are carried out. We have been a reputable fume hood manufacturer, in Turkiye, since 2006. We have a wide range of chemical fume hoods for R&D lab, QC lab, Educational & School lab or a third-party testing lab; you are all covered with our fume hoods.
WHICH QUALITY CERTIFICATES DO WE HAVE ? All our fume hoods are type-tested for ASHRAE 110:2016 and EN 14175:2003 performance standards and certified by third-party too. Those also comply with SEFA-1 standards. Additionally, the fume hood performance can be tested on site, after the installation.
BS-EN-14175-Certified-Fume-Cupboard
While selecting a fume hood the most obvious parameter that needs attention is the size and overall dimensions. Lab space availability and features, Type(s) of intended experimentation, Equipment setup needs, and finally Ease of working should help in determining the right size. Sizes usually indicate the overall width of the fume hood.
The chart below gives external fume hood dimensions. The standard working height is 900mm. For a low bench or a “walk-in” fume hood, it is 450- 600 mm. These are external dimensions and that the internal dimensions differ among manufacturers. Users must evaluate the internal useable area in consultation with manufacturers. Ducted fume hoods are re-locatable to an extent, but, not portable.
Finally, standard sizes need not be a limiting factor in procuring the right fume hood for a certain application. Competent manufacturers have the expertise to design and deliver bespoke (suit to use) fume hoods. Beyond fume hoods, there are special-purpose ventilated fume enclosures for odd needs. Neccessary fume ventilation must be technically assessed. make sure, the correct solution is used. We should remember that the single most important aspect is always, user safety.
Fume-cupboard-dimensions

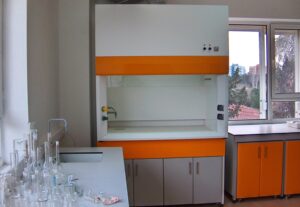

Fume-cupboard
In general, main body of the fume cupboards are made in, epoxy powder coated steel. An acid resistant polypropylene fan should extract the acid fumes. Additionally, a chemical cupboard is placed under the worktop, without a doubt.
Also, the correct material should be used on the fume hood, dependig on the purpose of point of use. These materials can vary between, HPL, PP, Acid Ceramic, Stainless steel for the work surface. a PP cup sink would be an useful accessory. Another key point, 6mm thick tempered glass is used as sash, for safety reasons.

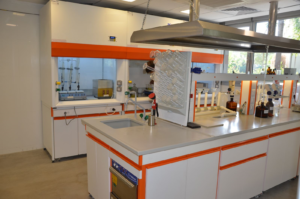

Fume-hoods-and-island-bench
Clean the interior and exterior surfaces and then lastly, sash, periodically. And after spills, using deionized water. Wipe the areas down, with a soap solution.
NOTE: in order to protect yourself from hazardous chemicals, firstly, please wear appropriate Personal Protection Equipment (PPE) then clean up the fume hood.

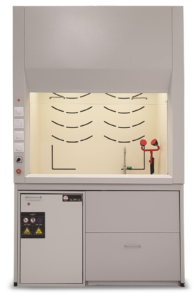

bespoke-fume-hood
