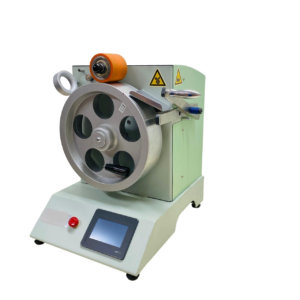

AUTOMATiC-RiBBON-WiNDiNG-MACHiNE
In general, automatic ribbon yarn winding machine, allows you to standardize your ribbon and roving measurements. Thus, it provides the parameter that is important in quality control. Also, thanks to its calibrated pulley, it helps you to make standard measurements. Additionally, thanks to its standard speed, it reduces human-induced measurement errors.
Touch screen.
Calibrated pulley.
Special design cutting scissors.
Digital speed indicator.
Manual turning handle.
Roving and ribbon hanger (Optional).

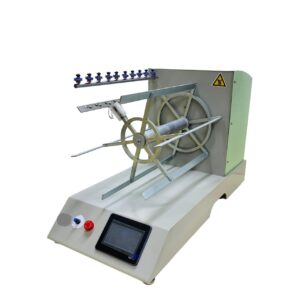

AUTOMATiC-YARN-WiNDiNG-WHEEL
Generally, it is suitable for processes such as yarn count determination or dyeing tests. In this way, you can use it to create a skein of the desired length. However, it is possible to choose the circumference of the spinning wheel as 1 meter or 1 yard. The skein created with the folding arm is easily removed from the device.
After all, you can determine the yarn count using the touch screen on the device. You can see your yarn count results by entering the gram value measured with the precision scale on the screen. It is delivered with a yarn stand that allows you to wind 10 pieces of yarn at the same time.
internal thermal printer can be connected. This helps you to quickly print your results.
thermal-printer
The yarn is wound on black or white conical sheets, especially at the desired distance and density.
In this way, it will be possible to examine the hairiness, neps, irregularity and other faults in the yarns.
Yarn Appearance Board Winder Fabrics Testing Instrument
3.5” Touch panel
You can select a unit. (wraps per cm/ wraps per inch)
Pre-tension application
Wrap density input is possible.
You can adjust the winding speed.
1 piece black / white plate
When the winding is finished, the device stops automatically
Operating voltage 220 VAC 50Hz 2 Amperes
yarn-twist-tester
Touchscreen digital panel
Single and double yarn twist measurement
You can select manual or automatic mode
You can select S or Z twist directions
Measuring length: 10-500 mm
Speed maximum: 3000 rpm
Pre-tension calculation
USB communication
as shown above.
***
Additionally, internal thermal printer can be connected. This helps you to quickly print your results.
********
